    Anycut Double-Head Graph Plotter Adsorption Batch Production Cutting Machine with Servo Motor

    Ask Lasest Price
    Brand Name : Anycut
    Model Number : SVD370PRO_RL
    Certification : CE/FCC/RoHS
    Price : $2826-3682/piece
    Payment Terms : T/T,Western Union
    Supply Ability : 1-4 pieces:2days ;5-30 pieces:2-15 days;30-100 pieces:20 days
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    Anycut Double-Head Graph Plotter Adsorption Batch Production Cutting Machine with Servo Motor

    Anycut Double-Head Graph Plotter Adsorption Batch Production Cutting Machine with Servo Motor

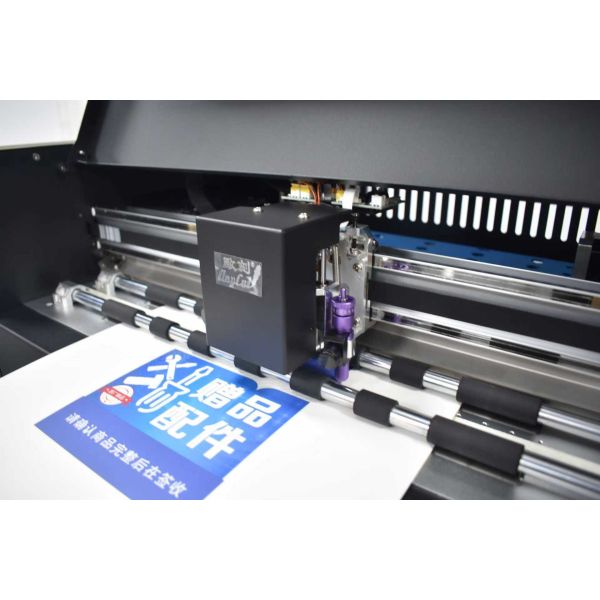

    The SVD370PRO_RL is an intelligent die-cutting machine focusing on efficient batch processing, with adsorption wheel indentation and suction feeding technology as its core highlights. It can effectively eliminate static electricity and avoid double-sheet feeding, and hold up to 1000 sheets at a time, greatly improving the processing efficiency of self-adhesive stickers, special paper, personalized business cards and other materials. The 370mm media width is suitable for processing small and medium-sized materials; 3000g pressure can cut 600gsm thick materials, and a 1600mm/s cutting speed makes large-batch operations more efficient.

    Equipped with a 5.0-inch LCD touch screen, it supports WIFI, USB and network cable connections—one machine can link multiple computers, and USB flash drive offline operation is also easy to achieve. The dual Roland cutter heads plus CCD camera for fully automatic positioning, with ±0.01mm cutting accuracy, can precisely cut special-shaped cards and cartons, and full cutting, half cutting and indentation can be completed in one go. The high-speed servo motor ensures stable operation, and the dual-head carriage structure adapts to diverse processing needs, making it a practical cutting device for graphic shops and small processing plants.


    MODELSVD370PRO_RL
    Max.media width370mm
    Max.media width370mm
    Auto contour cutCamera(automatically contour cutting)
    Controlpanel4.3inch touch screen
    MotorHigh speed servo motor
    Positioning modeQr code/Dot/right angle
    Number of heads2
    Blade typeRowland blade
    Packing sizeL 890mm*W 580mm*H 570mm
    Machine sizeL 770mm*W 480mm*H 370mm
    Gross Net weight63kgs/47kgs
    Cutting accuracy+/- 0.01mm
    Repeatability0.082mm
    Max.media thickness450gsm
    Max.cutting speed1600mm/s
    Max.force3000g
    Connect interfaceUSB/Lan/Wifi/web cable/MFI
    Power<150W
    Working environment﹢5℃-﹢35℃
    Power supply100~240V (adaptive)
    Suitable cutting materialSelf-adhesive sticker/coated paper/PVC
    Support softwareCDR/AI/PS/Contour software/Signmaster(optional)
    Memory1G
    Support systemAll versions of windows
